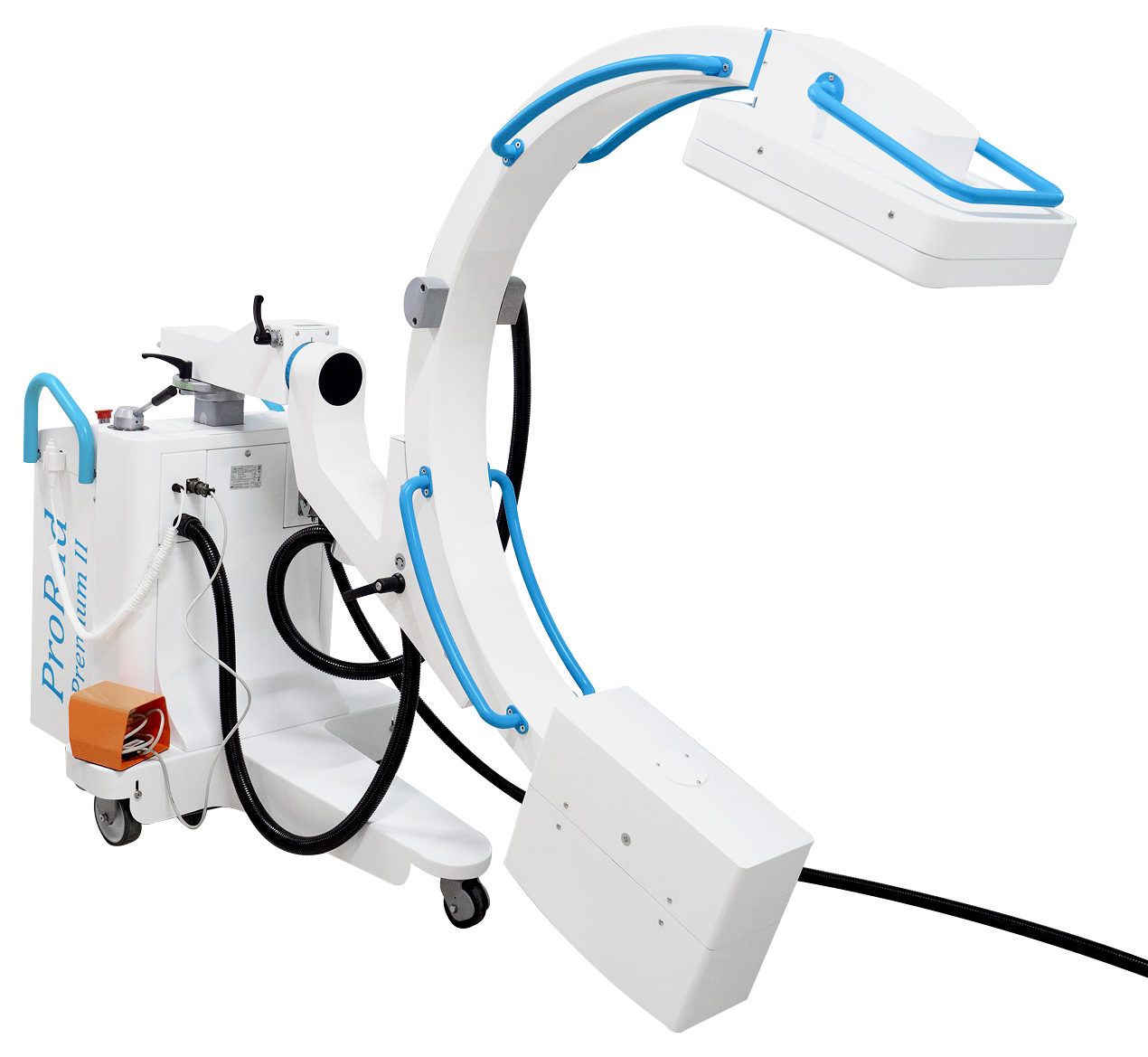

Fluroscopy C-Arm System
The ProRad Vet C-Arm digital fluoroscopy system provides consistently high image quality and is a highly versatile solution, perfect for streamlining and simplifying all routine and specialized interventional procedures within the veterinary OT.
TECHNICAL SPECIFICATIONS
Generator Type:
High frequency – 3.5kW / 5.0kW
Input Phase/Voltage:
Single Phase, 220 / 240 VAC
kV Range:
40 – 110kV / 40 – 120kV
mA Range for Radiography:
25 – 70 mA, 25 – 80 mA
mAs Range:
0.5 – 200 mAs
X-ray Tube:
Stationery Anode / Rotating Anode
mA Range – Continious Fluroscopy:
0.2 – 4 mA
Ideal for:
Veterinary – Diagnostic Centres | Corporate Hospitals | Equine | Companion animal X-ray | Government Hospitals | Exotic animal X-ray | Bovine
Delivering advanced, portable veterinary C-Arm fluoroscopy for real-time imaging.

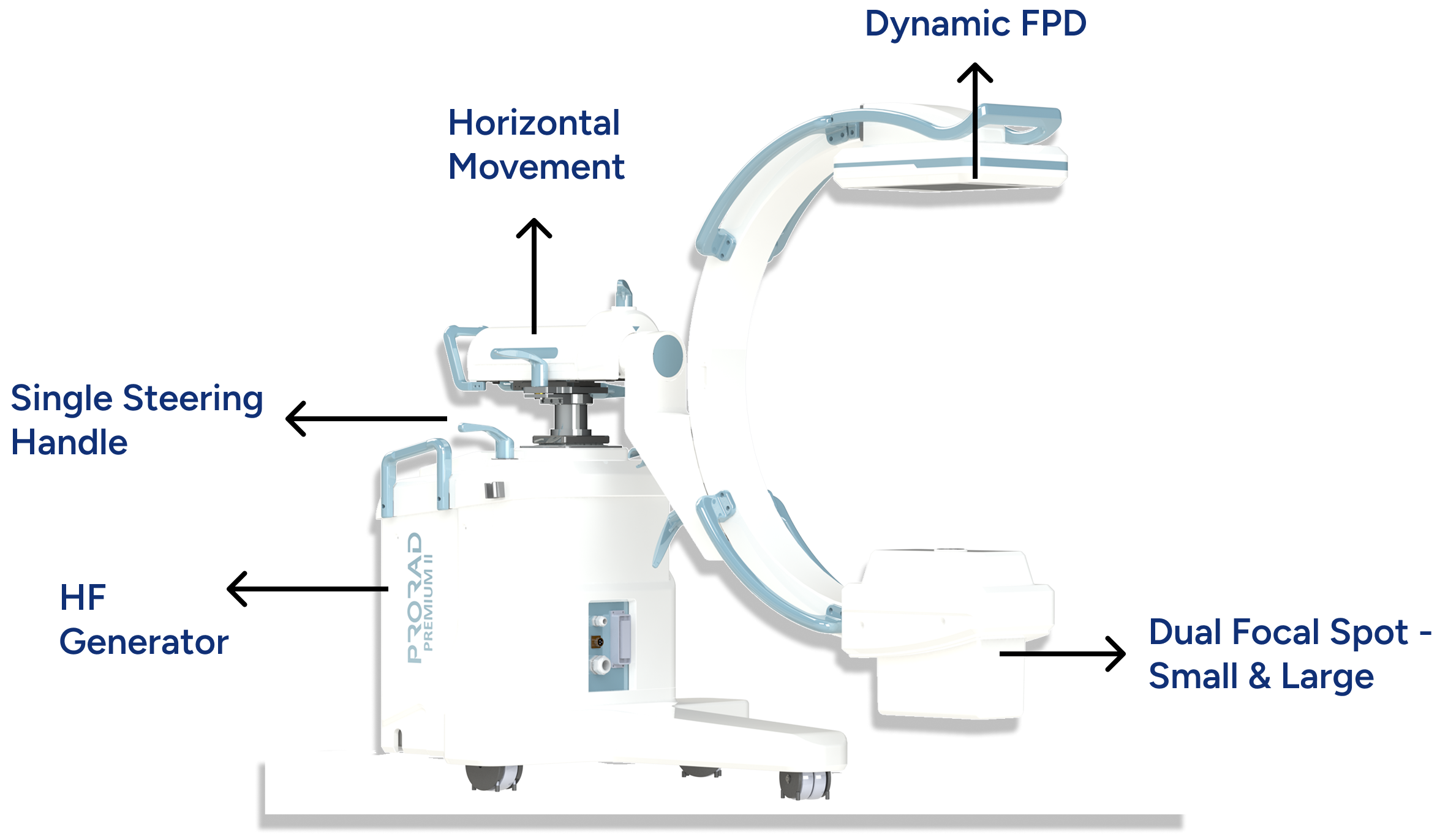

Highlights
Discover the innovative designs and practical advantages that sets ProRad Vet X-ray systems apart in modern veterinary imaging.
Ultra Compact and Smart Design
Enhanced Image Storage
Bigger C and Increased Depth
Fully Counter Balanced
Feather Weight
Active Area
Features
Discover the distinct features and innovative designs that elevate ProRad Vet X-ray systems in veterinary imaging.
ProRad Vet CS

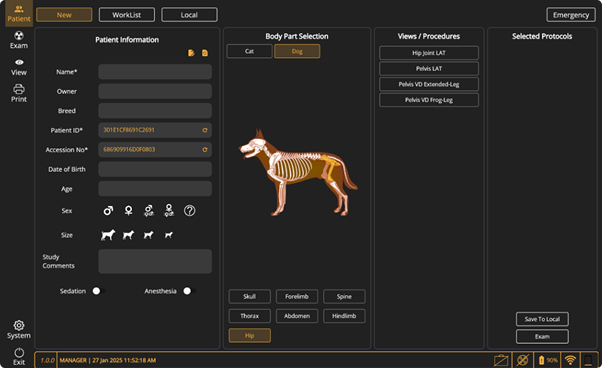

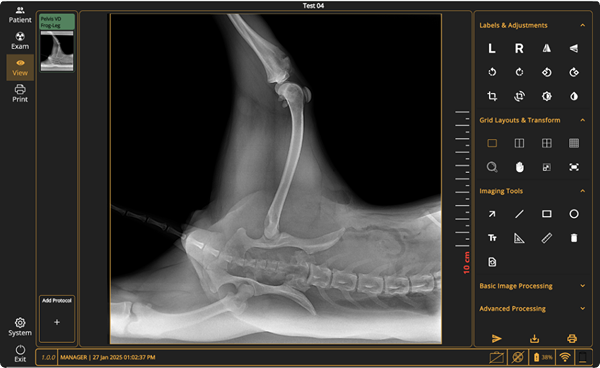

The PRORAD VET X-RAY System ensures exceptional image quality, vital for accurate diagnoses. This is powered by the integrated PRORAD VET CS software, which optimizes image processing to deliver consistently clear and high-resolution radiographs, enhancing diagnostic confidence for veterinary professionals.
Special Features
AI Noise Reduction
Advanced Image Processing Algorithm
DICOM Compatibility
Image Enhancement
Image Annotation and Print
Suitable For
Frequently Asked Questions
It is a highly versatile digital fluoroscopy system designed to provide advanced, high resolution, real-time imaging (live video X-ray) for veterinary diagnostic and interventional procedures.
The system is primarily used in the veterinary Operating Theater (OT) or surgical suites to guide procedures, such as orthopedic repair, vascular studies, or complex foreign body removal, using live X-ray feedback.
The C-Arm is designed to deliver advanced imaging for animals of all sizes, ensuring versatility across various veterinary specialties.
